IPI Pathomat

IPI Pathomat® is the innovative automatic film coverslipper for optimal use of patented IPI Pathotape® coverslipping film. First device in its class for the parallel use of 20- and 30-slide baskets ... variably combinable !

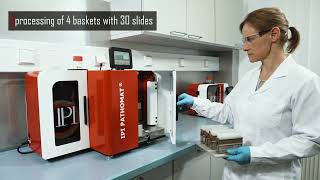

Processing capacity: 4 slide baskets = coverslipping of 120 slides within only 10 minutes ... in one routine cycle !

Open system concept: Most of the currently available slide baskets can be used immediately ... customizable on customer request !

Unique error detection of incorrectly inserted slides ... before it's too late and your sample is damaged ! Parameter control routines do the work for you and detect insufficiently covered slides, the end of the IPI Pathotape® coverslipping film roll and absent solvent ... automatically !

The innovative coverslipping process enables a reduction in xylene use ... optimized for the unique "VarioSurface" surface structure of IPI Pathotape® !  Excellent coverslipping quality and scannability ... even with challenging samples !

Reduction of exposure for laboratory personnel ... due to the high-performance activated carbon filter !

A MEMBER OF ISLAND GROUP ENTERPRISES Island Polymer Industries GmbH Developed, engineered and manufactured in Germany The device is manufactured 100% in Germany according to the EU IVD Directive 2017/746 and the standards DIN EN ISO 9001, DIN EN 61010, DIN EN 61326, DIN EN ISO 14971 in compliance with DIN EN 13485.

Device specification W x H x D: 68 x 56 x 44 cm

weight: 53 kg

processing capacity: 4 slide baskets slide baskets: 20 or 30 slides processing time: 10 minutes for 120 slides

compatibility: all standard racks (or adaptable according to customer specifications) acceptable slides: 76 x 26 mm thickness: 0.9 - 1.2 mm

solvent: Xylene (also prepared for use with alternative solvents) exhaust

air purification: IPI activated carbon filter (active/passive use)

power supply: external power supply 100-240V AC / 24V DC power consumption: 200 W (coverslipping mode)
